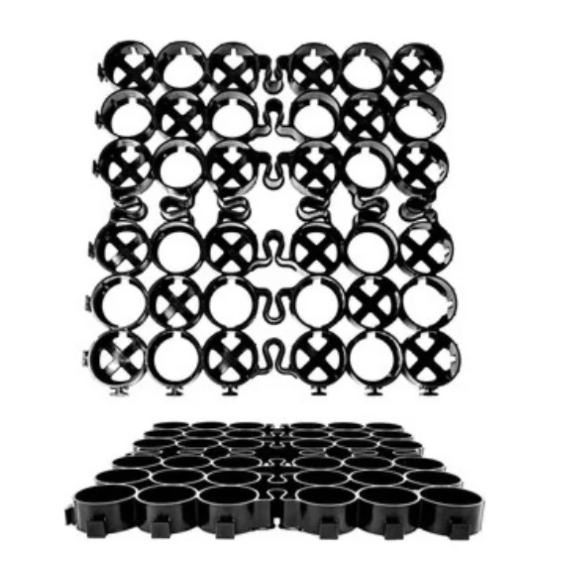

TRUEGRID PRO PLUS – Heavy-Duty Permeable Pavers

Commercial-Grade Ground Stabilisation for Driveways, Car Parks, Truck Yards & Heavy Vehicle Access

Transform gravel, grass and high-traffic outdoor areas into durable, stable and environmentally sustainable surfaces with TRUEGRID PRO PLUS S-Flex 48.

Engineered for heavy commercial and industrial applications, TRUEGRID PRO PLUS is an advanced permeable paving system that provides exceptional ground stabilisation while allowing rainwater to drain naturally through the surface.

Manufactured in Australia from 100% recycled HDPE plastic, TRUEGRID PRO PLUS is a sustainable alternative to traditional concrete and asphalt paving.

Its patented S-Flex joints and X-anchor design provide flexibility, strength and stability, making it ideal for commercial car parks, equipment yards, heavy vehicle accessways, rural driveways and landscaping projects.

Key Features & Benefits

• Heavy-Duty Commercial Strength: Engineered for high-traffic areas, commercial vehicles and industrial applications.

• 100% Permeable Grid Design: Allows rainwater to pass through the paving surface, supporting effective stormwater management.

• 100% Recycled HDPE: Manufactured from recycled high-density polyethylene for a more sustainable paving solution.

• Patented S-Flex Technology: Flexible joints accommodate ground movement and seasonal expansion and contraction.

• X-Anchor Technology: Integrated anchors help secure the grid within gravel surfaces and minimise movement.

• Deep Cellular Structure: Helps prevent gravel migration, rutting, potholes and uneven surfaces.

• Grass or Gravel Finish: Create attractive, natural-looking driveways, parking areas and accessways.

• UV-Stabilised Construction: Designed for durability in harsh Australian outdoor conditions.

• Easy Installation: Interlocking modular panels simplify installation without separate clips.

• Low Maintenance: Helps reduce ongoing repairs and surface deterioration.

• SUPERSPOT Compatible: Supports TRUEGRID parking markers for designated parking bays and traffic areas.

Ideal Applications

TRUEGRID PRO PLUS is suitable for a wide range of commercial, industrial and landscaping projects.

Commercial & Industrial

• Commercial car parks and overflow parking areas

• Truck yards and heavy vehicle parking

• Industrial equipment and machinery storage

• Warehouses and distribution centres

• Construction site entrances

• Emergency vehicle accessways

• Mining and agricultural access roads

Residential & Landscaping

• Heavy-duty driveways and rural access roads

• Gravel driveway stabilisation

• Caravan, motorhome and trailer parking

• Permeable grass parking areas

• Erosion control and sloped landscapes

• Event venues and recreational facilities

• Tree protection zones

Technical Specifications

How TRUEGRID PRO PLUS Works

The interlocking grid system is installed over a properly prepared, load-bearing foundation.

Once installed, the cellular structure is filled with suitable aggregate or soil and grass to create a strong, stable and permeable surface.

For Gravel Applications: The deep cells retain gravel and help prevent material displacement caused by vehicle traffic.

For Grass Applications: The grid helps distribute vehicle loads and protects the underlying soil structure, supporting grass-covered parking and access areas.

For Stormwater Management: A properly designed permeable base allows rainwater to enter and be stored temporarily beneath the paving surface, helping reduce surface runoff.

Installation Information

1. Prepare and level the ground according to the intended vehicle loads and site conditions.

2. Install a suitable compacted base and drainage system where required.

3. Lay and interlock TRUEGRID PRO PLUS panels.

4. Trim panels where necessary to accommodate curves, trees and landscaping features.

5. Fill the grids with the recommended gravel or grass-growing medium.

6. Finish, compact or establish turf according to the manufacturer's installation guidelines.

Important: Foundation preparation, base depth, drainage and load-bearing requirements depend on individual site conditions. Commercial and heavy vehicle applications may require professional engineering assessment. Newly seeded or turfed areas require establishment before regular traffic.

Why Choose TRUEGRID PRO PLUS?

Unlike conventional gravel surfaces, TRUEGRID PRO PLUS helps prevent shifting stones, deep wheel ruts and uneven ground.

Unlike impermeable concrete and asphalt, its open-cell design supports natural drainage when installed over an appropriately designed permeable foundation.

The result is a durable, environmentally responsible paving system designed for long-term outdoor performance.

Order TRUEGRID PRO PLUS from AusPots

Whether you're planning a driveway, upgrading a commercial parking area or developing a heavy-duty accessway, TRUEGRID PRO PLUS offers a practical solution for ground stabilisation and permeable paving.

Contact AusPots for product enquiries, project quantities and bulk orders. 0411883681 - Anthony
